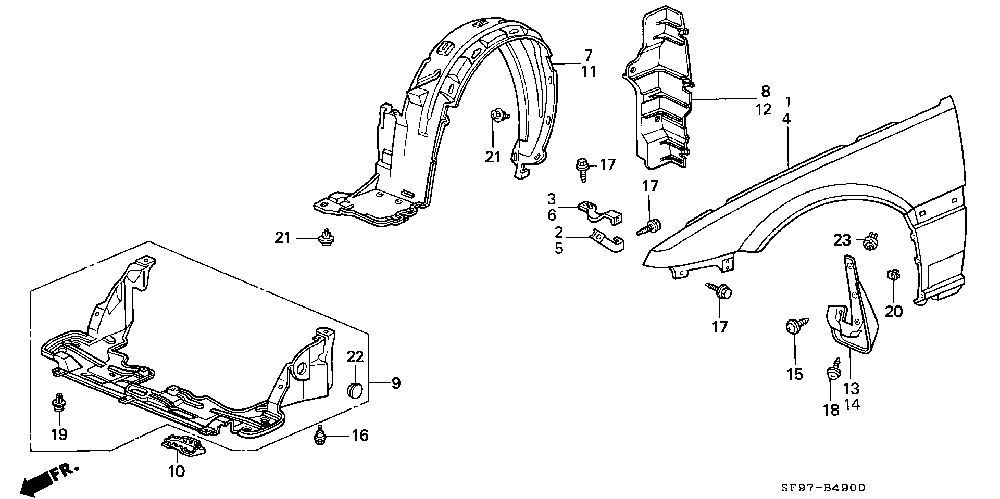

1 PANEL, R.
FR. FENDER
2 STAY A, R. FR. FENDER
3 STAY B, R. FR. FENDER
4 PANEL, L. FR. FENDER (DOOR MIRROR)
5 STAY A, L. FR. FENDER
6 STAY B, L. FR. FENDER
7 FENDER, R. FR. INNER
8 FIARING, R. FR. FENDER
9 SHIELD, FR. SPLASH
10 LID, SPLASH SHIELD
11 FENDER, L. FR. INNER
12 FIARING, L. FR. FENDER
13 MUDGUARD, R. FR.
14 MUDGUARD, L. FR.
15 SCREW, TAPPING, 5X20
16 BOLT, FLANGE, 6MM
17 BOLT, HOOD, 6X16
18 SCREW-WASHER, TAPPING, 5X25
19 CLIP, SPLASH SHIELD
20 GROMMET, SCREW, 5MM
21 CLIP, INNER FENDER
22 PLUG, CONSOLE
23 GROMMET, SCREW, 5MM
