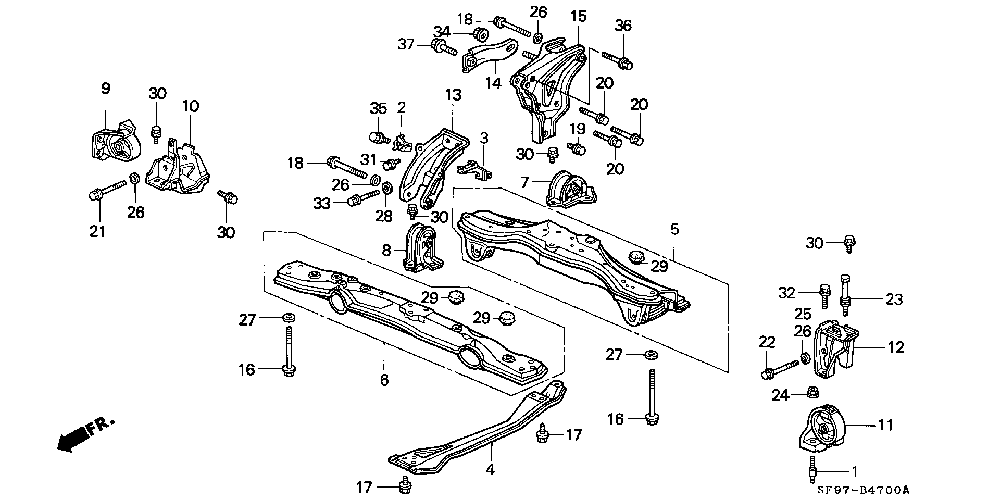

1 BOLT,
STUD, 10X42
4 BEAM, CENTER
5 BEAM, RR. (4WS)
6 BEAM, FR.
7 INSULATOR, RR. MOUNTING RUBBER
8 INSULATOR, FR. ENGINE MOUNTING RUBBER (MT)
9 INSULATOR, TRANSMISSION MOUNTING RUBBER (MT)
10 HOLDER, TRANSMISSION MOUNTING (MT)
11 RUBBER, CYLINDER MOUNTING
12 HOLDER, CYLINDER MOUNTING
13 BRACKET, FR. ENGINE MOUNTING
15 BRACKET, RR. ENGINE MOUNTING
16 BOLT, FLANGE, 12X105
17 BOLT-WASHER, 10X21
18 BOLT, FLANGE, 12X90
19 BOLT, FLANGE, 12X30
20 BOLT, FLANGE, 12X60
21 BOLT, FLANGE, 12X92
22 BOLT, FLANGE, 12X125
23 BOLT, CYLINDER MOUNT HOLDER
24 NUT, FLANGE, 10MM
25 WASHER, TRAILING, 12MM
26 WASHER, PLAIN, 12MM
27 WASHER, PLAIN, 12MM
28 WASHER, PLAIN, 10MM
29 GROMMET, SUB FRAME, 15MM
30 BOLT-WASHER, 10X20
31 BOLT-WASHER, 10X25
32 BOLT-WASHER, 10X40
33 BOLT-WASHER, 10X40
