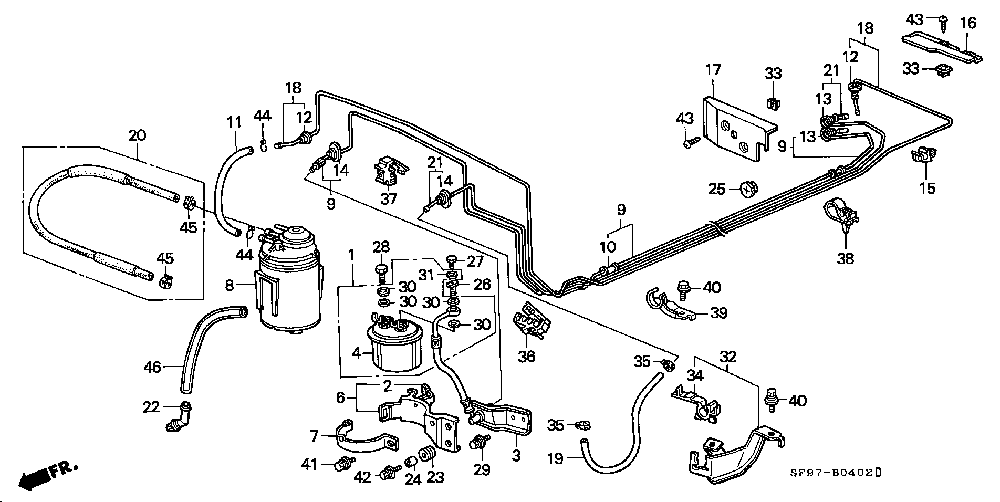

1 STRAINER
SET, FUEL
2 CUSHION, FUEL STRAINER
3 HOSE, FUEL STRAINER
6 STAY, FUEL STRAINER
7 BAND, FUEL STRAINER
8 CANISTER ASSY.
9 PIPE COMP., FUEL FEED
10 RUBBER, FUEL PIPE INSULATOR
11 TUBE, FUEL VENT
12 GROMMET, FUEL PIPE
13 GROMMET, FUEL PIPE
14 GROMMET, FUEL PIPE
15 CLAMP, FUEL PIPE
16 PROTECTOR, FUEL PIPE
17 PROTECTOR B, FUEL PIPE
18 PIPE COMP. A, VENT
19 HOSE, PRESSURE REGULATOR RETURN
20 HOSE ASSY., PURGE
21 PIPE COMP., FUEL RETURN
22 JOINT, DRAIN TUBE
23 RUBBER, MOUNTING
24 COLLAR, DISTANCE
25 GROMMET A, BRAKE PIPE (BLACK)
26 BOLT, BANJO, 12MM
27 BOLT, SEALING, 6MM
28 BOLT, SEALING, 12MM
29 BOLT-WASHER, 6X16
30 WASHER, SEALING, 12MM
31 WASHER, SEALING, 6MM
33 GROMMET, SCREW, 5MM (BLACK)
34 CLIP, FUEL HOSE
35 CLAMP, FUEL HOSE, 15.5MM
36 CLIP, FUEL PIPE
37 CLIP, FUEL PIPE
38 CLAMP, FEED PIPE
39 CLAMP, RETURN HOSE
40 BOLT-WASHER, 6X12
41 BOLT-WASHER, 6X16
42 BOLT-WASHER, 6X25
43 SCREW, TAPPING, 5X12
44 CLIP, TUBE (B10)
45 CLAMP, TUBE (D10.5)
46 TUBE, VINYL, 12X16X240 (95003-40001-60M)
