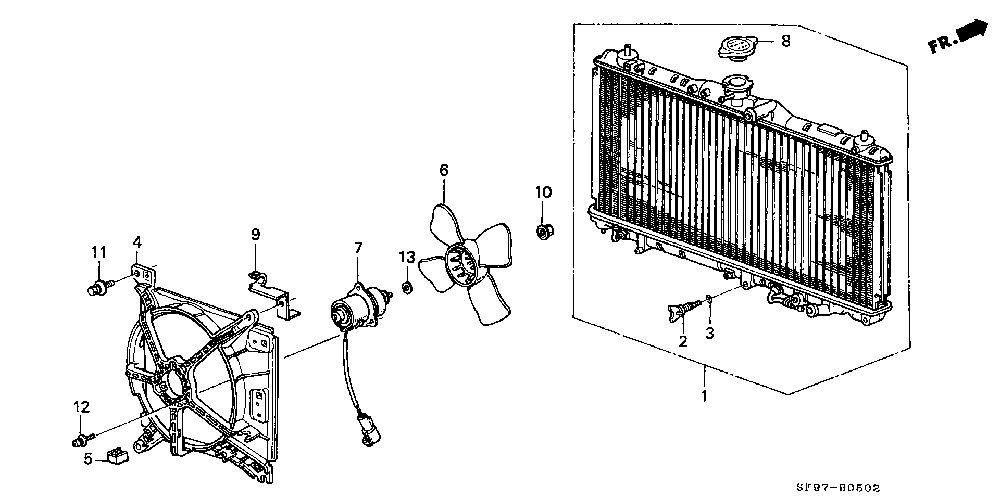

1 RADIATOR
COMP. (TOYO)
2 COCK, DRAIN (TOYO)
3 PACKING, DRAIN (TOYO)
4 SHROUD COMP. (TOYO)
5 CLIP, HARNESS (TOYO)
6 FAN COMP., COOLING (MITSUBA)
7 MOTOR, COOLING FAN (MITSUBA)
8 CAP COMP. (TOYO)
9 CLAMP, RESEVE TANK TUBE
10 NUT, HEX., 5MM (MITSUBA)
11 BOLT-WASHER, 6X16
12 SCREW-WASHER, 4X12 (TOYO)
13 WASHER, PLAIN, 7MM (MITSUBA)
