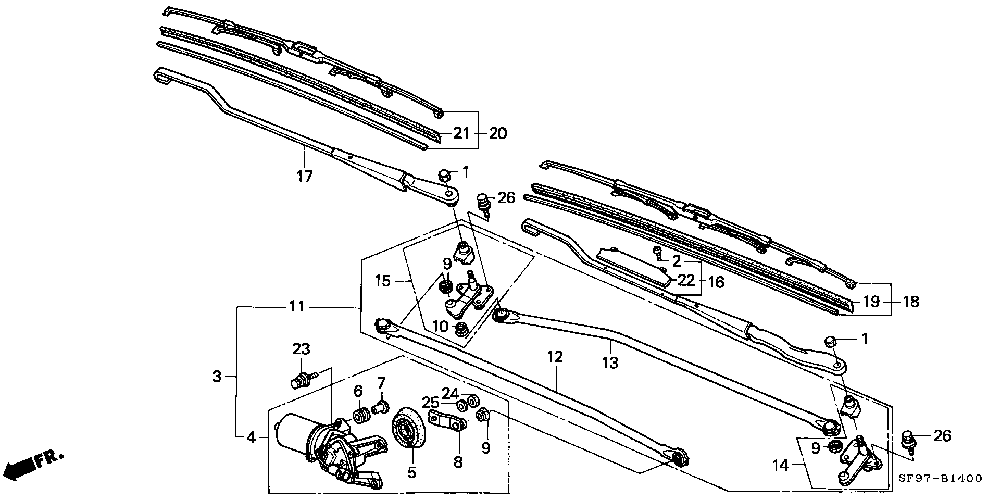

1 NUT,
WIPER ARM CAP, 10MM
2 SCREW-WASHER, 3.5X9.5
3 WIPER ASSY., WINDSHIELD
4 MOTOR COMP., FR. WIPER
5 SEAL A
6 RUBBER, BRACKETLESS MOUNTING
7 COLLAR, BRACKETLESS
8 LINK UNIT A (LH)
9 DUST SEAL
10 DUST SEAL
11 LINK COMP., FR. WIPER
12 ROD UNIT A (LH)
13 ROD UNIT B (LH)
14 PIVOT ASSY. C
15 PIVOT ASSY. B
16 ARM, WINDSHIELD WIPER (DRIVER SIDE)
17 ARM, WINDSHIELD WIPER (PASSENGER SIDE)
18 BLADE, WINDSHIELD WIPER (DRIVER SIDE)
19 RUBBER, BLADE (475MM)
20 BLADE, WINDSHIELD WIPER (PASSENGER SIDE)
21 RUBBER, BLADE
22 WING, WIPER ARM
23 BOLT-WASHER, 6X25 (DACRO COATING)
24 NUT, HEX., 10MM
25 WASHER, SPRING, 10MM
26 BOLT, FLANGE, 6X16
