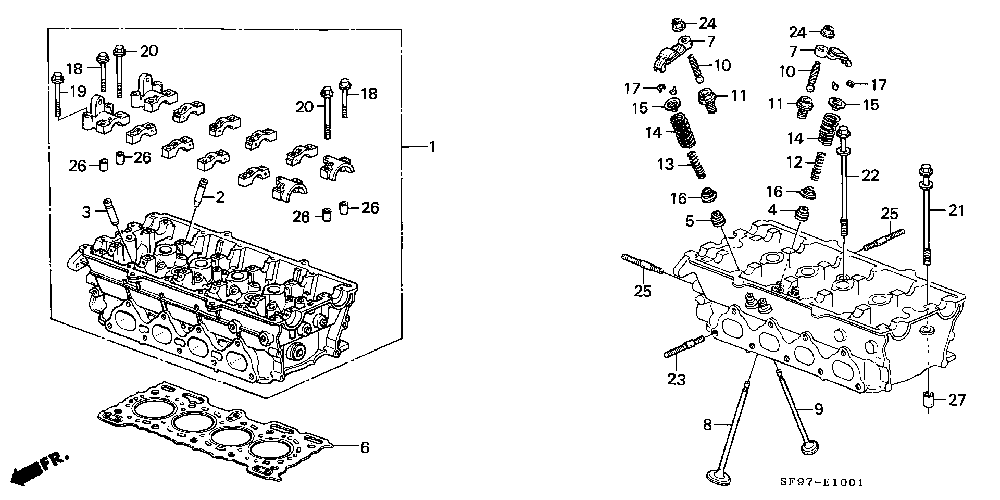

1 HEAD
ASSY., CYLINDER
2 GUIDE, IN. VALVE
3 GUIDE, EX. VALVE
4 SEAL A, VALVE STEM (ARAI)
4 SEAL A, VALVE STEM (NOK)
5 SEAL B, VALVE STEM (ARAI)
5 SEAL B, VALVE STEM (NOK)
6 GASKET, CYLINDER HEAD
7 ARM, VALVE ROCKER
8 VALVE, IN.
9 VALVE, EX.
10 SCREW, TAPPET ADJUSTING
11 BOLT, END PIVOT (NAGOYA RASHI)
11 BOLT, END PIVOT (TOKAI TRW)
12 SPRING, VALVE INNER (BLUE) (NIPPON HATSUJO)
12 SPRING, VALVE INNER (BLUE) (CHUO HATSUJO)
13 SPRING, VALVE INNER (BLUE) (NIPPON HATSUJO)
13 SPRING, VALVE INNER (BLUE) (CHUO HATSUJO)
14 SPRING, VALVE OUTER (PINK) (NIPPON HATSUJO)
14 SPRING, VALVE OUTER (PINK) (CHUO HATSUJO)
15 RETAINER, VALVE SPRING
16 SEAT, VALVE SPRING
17 COTTER, VALVE (FUJI VALVE)
17 COTTER, VALVE (SANKO)
18 BOLT, FLANGE, 6X40
19 BOLT, FLANGE, 6X40
20 BOLT, FLANGE, 6X60
21 BOLT, FLANGE, 11X151
22 BOLT, FLANGE, 11X181
23 BOLT, STUD, 8X48
24 NUT, TAPPET ADJUSTING
25 BOLT, STUD, 8X28
26 PIN, DOWEL, 8X14
27 PIN, DOWEL, 14X20
