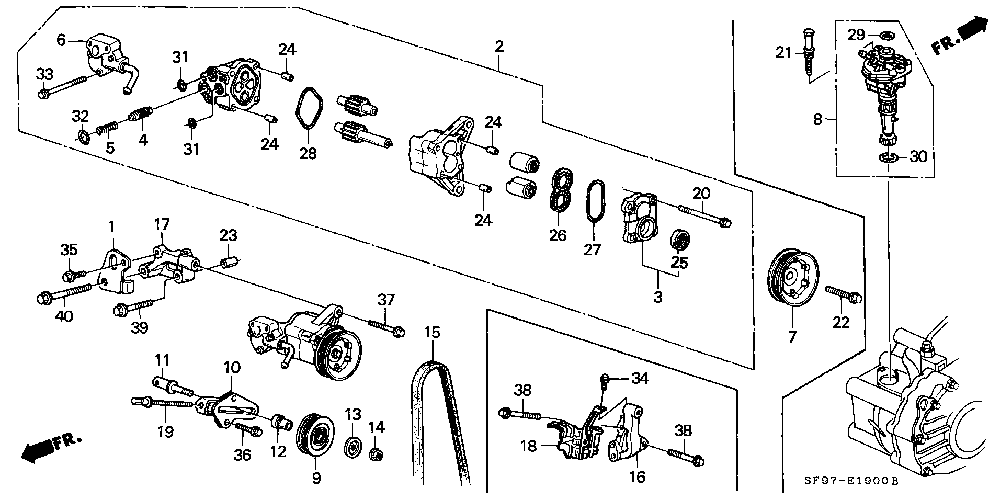

1 HANGER
COMP., ENGINE
2 SUB PUMP ASSY., POWER STEERING
3 COVER COMP., FR. PUMP
4 SPOOL ASSY. (A) (-0.005 / 0)
4 SPOOL ASSY. (B) (0 / +0.006)
5 SPRING, SPOOL
6 FITTING, INLET OUTLET
7 PULLEY COMP., POWER STEERING
8 SENSOR ASSY., POWER STEERING
9 PULLEY COMP., IDLE
10 STAY COMP., POWER STEERING PUMP IDLE PULLEY
11 BOLT, IDLE PULLEY
12 COLLAR, IDLE PULLEY
13 COVER, IDLE PULLEY
14 NUT, IDLE PULLEY
15 BELT, POWER STEERING PUMP (MITSUBOSHI)
15 BELT, POWER STEERING PUMP (BANDO)
17 BRACKET, POWER STEERING PUMP
19 BOLT, POWER STEERING PUMP ADJUSTING
20 BOLT, FLANGE, 6X78
21 BOLT-WASHER, 6X26
22 BOLT, SPECIAL, 8MM
23 PIN, DOWEL, 12X14
24 PIN, DOWEL, 8X10
25 OIL SEAL, 16X30X7 (NOK)
25 OIL SEAL, 16X30X7 (ARAI)
26 SEAL, PLUNGER (NOK)
26 SEAL, PLUNGER (ARAI)
27 SEAL, FR. COVER (NOK)
27 SEAL, FR. COVER (ARAI)
28 SEAL, HOUSING
29 O-RING, 14.8X1.9
30 O-RING, 23.5X2
31 O-RING, 14.5X1.5 (NOK)
31 O-RING, 14.5X1.5 (ARAI)
32 O-RING, 18X1.5 (NOK)
32 O-RING, 18X1.5 (ARAI)
33 BOLT, FLANGE, 6X32
35 BOLT, FLANGE, 8X16
36 BOLT, FLANGE, 8X25
37 BOLT, FLANGE, 8X35
39 BOLT, FLANGE, 10X50
40 BOLT, FLANGE, 10X75
