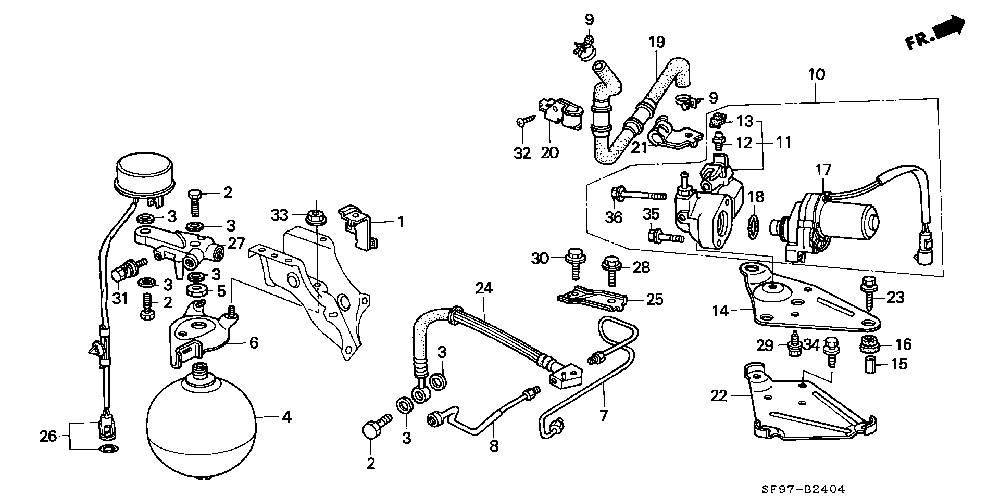

1 BRACKET,
COUPLER (A.L.B.)
2 BOLT, OIL
3 PACKING, OIL BOLT
4 ACCUMULATOR
5 NUT, ACCUMULATOR
6 BRACKET, ACCUMULATOR
7 PIPE, ACCUMULATOR
8 PIPE, MODULATOR
9 CLAMP, HOSE, 14MM
10 PUMP ASSY.
11 PUMP COMP.
12 BLEED, AIR
13 CAP, AIR BLEED
14 BRACKET, PUMP
15 PIPE, MOUNTING
16 MOUNT A, PUMP BRACKET
17 MOTOR ASSY. (ABS)
18 O-RING, MOTOR
19 HOSE COMP., PUMP
20 CLAMP A, PUMP HOSE
21 CLAMP B, HOSE PUMP
22 BRACKET, POWER UNIT
23 BOLT-WASHER, 6X28
24 HOSE, PRESSURE
25 BRACKET, HOSE END
26 SWITCH ASSY., PRESSURE
27 JOINT, PRESSURE SWITCH
28 BOLT-WASHER, 8X16
29 BOLT, SENSOR LOCK, 6X12
30 BOLT, FLANGE, 8X16
31 BOLT-WASHER, 6X16
32 SCREW, TAPPING, 3X6
33 NUT, FLANGE, 6MM
34 BOLT, FLANGE, 6X16
35 BOLT, FLANGE, 6X32
36 BOLT, FLANGE, 6X60
