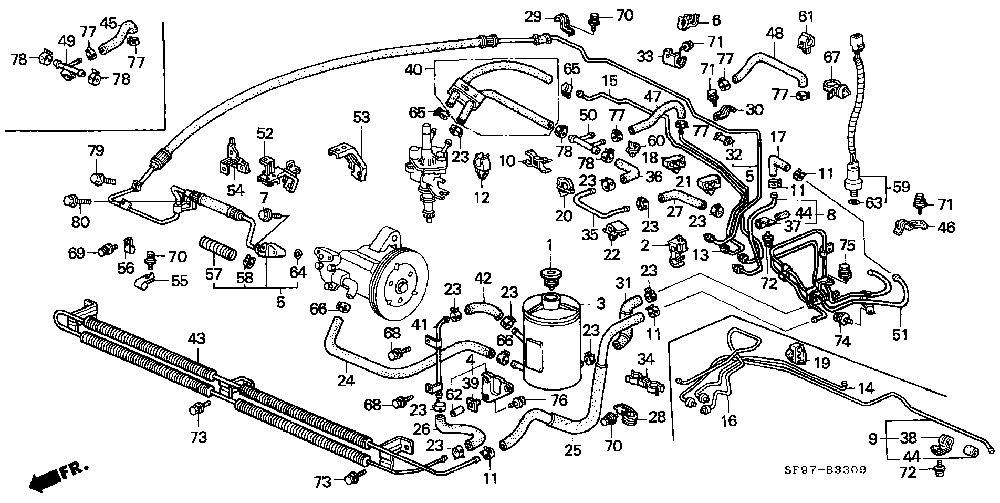

1 CAP, OIL
TANK
2 CLIP, SENSOR PIPE, 6MM
3 TANK COMP., POWER STEERING OIL
4 BRACKET ASSY., OIL TANK
5 HOSE COMP., FEED
6 CLIP, FEED HOSE
7 BOLT, FLANGE, 6X22
8 PIPE COMP., RETURN, 10MM frame
number : 00000000-0C305276
8 PIPE COMP., RETURN, 10MM frame
number : 0C305277-zzzzzzzz
10 CLIP, DRAIN HOSE
11 CLIP, OIL HOSE frame number :
00000000-0C305276
11 CLIP, OIL HOSE frame number :
0C305277-zzzzzzzz
13 PIPE COMP., RETURN, 6MM
15 PIPE COMP., SENSOR (6MM)
17 TUBE, SPEED SENSOR RETURN
18 CLIP A, RETURN PIPE, 6MM
20 CLIP, RETURN PIPE, 10MM
21 CLIP, RETURN PIPE, 6MM
21 CLIP, RETURN PIPE, 6MM
22 CLIP A, RETURN PIPE, 10MM
23 CLAMP D, 15.5MM
24 TUBE, SUCTION
25 HOSE, OIL COOLER INLET frame number
: 00000000-0C305276
25 HOSE, OIL COOLER INLET frame number
: 0C305277-zzzzzzzz
26 TUBE, OIL COOLER RETURN
27 HOSE, COMBINATION PIPE INLET frame
number : 00000000-0C305276
27 HOSE, COMBINATION PIPE INLET frame
number : 0C305277-zzzzzzzz
28 CLAMP, POWER STEERING TUBE
31 TUBE, COMBINATION PIPE RETURN
33 CLAMP, FEED HOSE (B)
34 CLIP, OIL COOLER INLET HOSE
35 PIPE, SPEED SENSOR RETURN
36 TUBE, SPEED SENSOR RETURN (B)
37 STAY, PIPE CLAMP
39 RUBBER, MOUNTING
40 HOSE COMP., SENSOR
41 PIPE, TANK RETURN (10MM)
42 TUBE, OIL TANK RETURN
43 COOLER, POWER STEERING OIL frame
number : 00000000-0C305276
43 COOLER, POWER STEERING OIL frame
number : 0C305277-zzzzzzzz
44 CUSHION, OIL COOLER
45 TUBE A, DRAIN
46 HOLDER A, POWER STEERING PIPE
47 TUBE C, DRAIN
50 SENSOR COMP., FOUR WAY JOINT
51 PIPE COMP., POWER STEERING COMBINATION
frame number : 00000000-0C305276
51 PIPE COMP., POWER STEERING COMBINATION
frame number : 0C305277-zzzzzzzz
53 STAY A, FEED HOSE
55 CLAMP A, FEED HOSE
56 CLAMP B, FEED HOSE
57 PROTECTOR, FEED HOSE
58 CLAMP, PROTECTOR
59 SWITCH ASSY., PRESSURE (P.S.)
61 CLIP, WIRE HARNESS
62 COLLAR, OIL PUMP
63 O-RING, 7.8X1.9
64 O-RING, 8.8X1.9
65 CLIP, POWER STEERING HOSE
66 CLAMP D, 19MM
67 BAND, WIRE HARNESS (WHITE) (93.5MM)
68 BOLT-WASHER, 6X12
69 BOLT-WASHER, 8X16
70 BOLT-WASHER, 6X16
71 BOLT-WASHER, 6X12
72 BOLT-WASHER, 6X16
73 BOLT-WASHER, 6X16
74 BOLT-WASHER, 6X16
75 BOLT-WASHER, 6X16
76 BOLT-WASHER, 6X20
77 CLAMP, TUBE (D10)
78 CLAMP, TUBE (D12)
79 BOLT, FLANGE, 6X12
80 BOLT, FLANGE, 8X12
