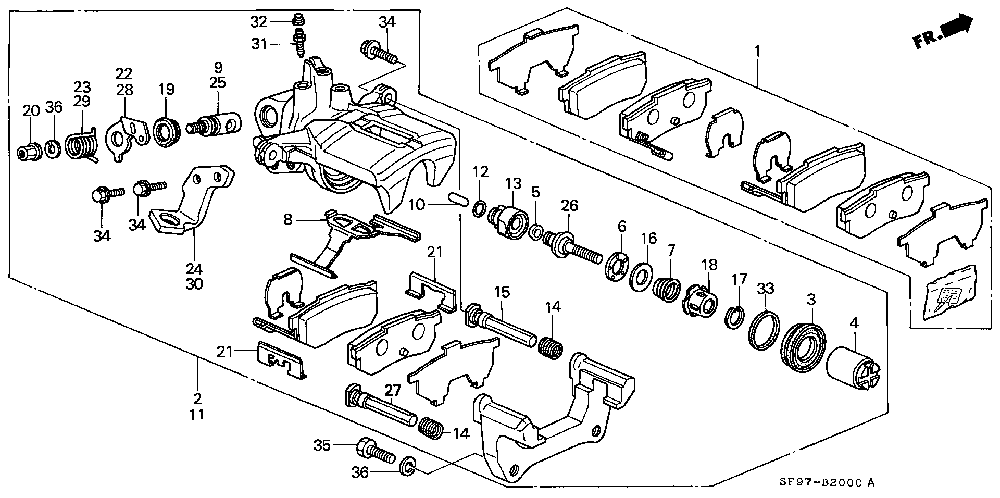

1 PAD SET,
RR.
2 CALIPER ASSY., R. RR. (NISSIN) (9CLP-13S)
3 DUST COVER, PISTON
4 PISTON ASSY.
5 CUP
6 BEARING A
7 SPRING B, ADJUSTING
8 SPRING, PAD
9 SHAFT A
10 ROD
11 CALIPER ASSY., L. RR. (NISSIN) (9CLP-13S)
12 O-RING
13 PISTON COMP., SLEEVE
14 COVER, DUST
15 PIN A
16 SPACER
17 RING, RETAINING
18 GUIDE, SPRING
19 COVER, SHAFT
20 NUT, PARKING
21 RETAINER
22 LEVER, R.
23 SPRING, R. RETURN
24 ARM, R.
25 SHAFT B
26 BOLT, ADJUSTING
27 PIN B
28 LEVER, L.
29 SPRING, L. RETURN
30 ARM, L.
31 SCREW, BLEEDER
32 CAP, BLEEDER SCREW
33 SEAL, PISTON
34 BOLT, FLANGE, 8X22
35 BOLT, HEX., 10X25
36 WASHER, SPRING, 10MM
