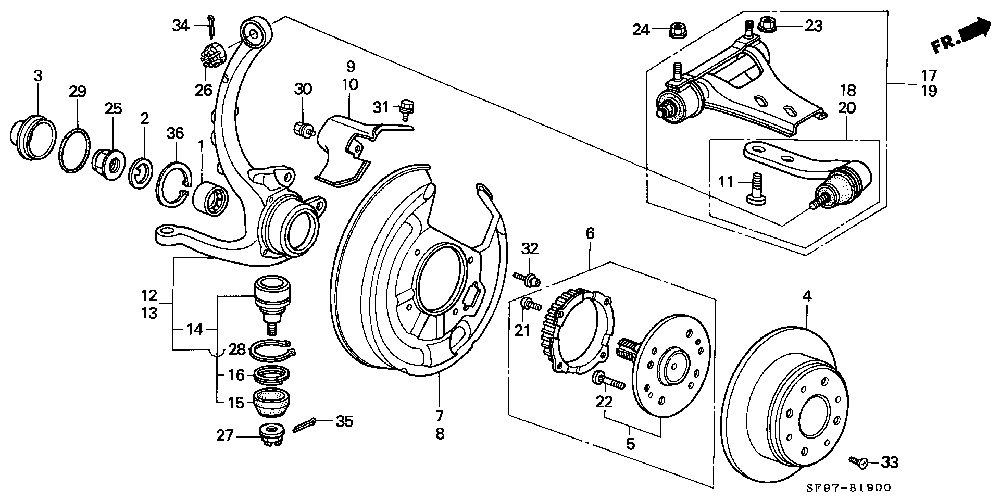

1 BEARING
ASSY., RR. HUB (TOYO)
2 WASHER, RR. HUB
3 CAP, RR. HUB
4 DISK, RR. BRAKE
6 HUB ASSY., RR. (A.L.B.)
7 GUARD, R. RR. SPLASH
8 GUARD, L. RR. SPLASH
9 PROTECTOR, R. RR. CALIPER
10 PROTECTOR, L. RR. CALIPER
11 BOLT, UPPER ARM
12 KNUCKLE COMP., R. RR. (A.L.B.)
13 KNUCKLE COMP., L. RR. (A.L.B.)
14 JOINT COMP., FR. LOWER BALL (MUSASHI)
15 BOOT, LOWER BALL DUST
16 CIRCLIP, LOWER BALL
17 ARM ASSY., R. RR. UPPER
18 JOINT COMP., R. RR. UPPER BALL
19 ARM ASSY., L. RR. UPPER
20 JOINT COMP., L. RR. UPPER BALL
21 SCREW, PAN, 5X10
22 BOLT, WHEEL (TOKAI TRW)
22 BOLT, WHEEL (NAGOYA RASHI)
23 NUT, SELF-LOCK, 10MM (SATO RASHI)
24 NUT, SELF-LOCK, 12MM (SATO RASHI)
25 NUT, SPINDLE
26 NUT, UPPER BALL PIN, 10MM
27 NUT, CASTLE, 12MM
28 CIRCLIP, EXTERNAL, 42MM
29 O-RING, 66X1.3
30 BOLT-WASHER, 6X12
31 BOLT-WASHER, 6X10
32 BOLT-WASHER, 6X12
33 SCREW, FLAT, 6X14
34 PIN, SPLIT, 2.0X18
35 PIN, SPLIT, 3.0X22
36 CIRCLIP, INTERNAL, 68MM
